Introduction #

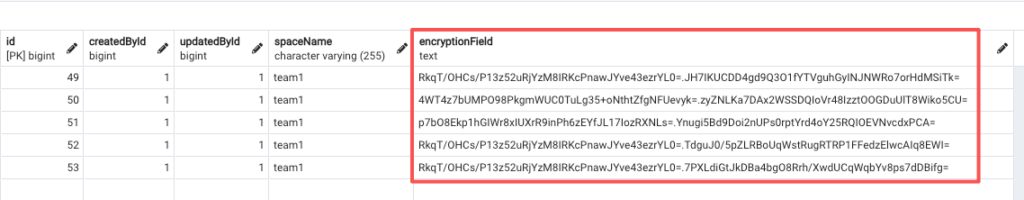

You can encrypt sensitive business data—such as customer phone numbers, email addresses, or card numbers—so that it is stored in the database as ciphertext.

Encryption Method #

WARNING

The plugin automatically generates an application key, which is stored under the directory /storage/apps/main/encryption-field-keys.

Each application key is saved as a file whose name is the key ID, with the .key extension. Do not rename these files.

Keep your application key files safe. If an application key file is lost, encrypted data cannot be decrypted.If the plugin is enabled in a sub-application, the key is stored under: /storage/apps/${sub-app-name}/encryption-field-keys

How It Works #

This plugin uses an envelope encryption scheme.

Application and Field Key Creation #

1. When you create your first encrypted field, APES automatically generates a 32-byte application key, stores it in the default directory, and encodes it in base64.
2. Each time you create a new encrypted field, the system generates a random 32-byte field key, encrypts it using the application key and a randomly generated 16-byte field IV (AES), and stores the encrypted result in the options column of the fields table.

Field Encryption Process #

1. When writing data to an encrypted field, APES retrieves the encrypted field key and field IV from the options column of the fields table.
2. The system decrypts the field key using the application key and field IV. It then encrypts the actual data using the field key and a randomly generated 16-byte data IV (AES).
3. The decrypted field key is also used to sign the plaintext using HMAC-SHA256, producing a base64-encoded data signature (used later for querying).
4. The 16-byte data IV and ciphertext are concatenated and encoded in base64.
5. The base64 data signature and base64 ciphertext are joined with a . separator.
6. The final string is stored in the database.

Environment Variables #

If you want to specify your own application key, you can set the environment variable ENCRYPTION_FIELD_KEY_PATH. The plugin will load all .key files in this directory as application keys.

Application key file requirements:

1. The file extension must be .key.
2. The filename is treated as the key ID; using a UUID is recommended.
3. The file content must be base64-encoded 32-byte binary data.

ENCRYPTION_FIELD_KEY_PATH=/path/to/my/app-keys/270263524860909922913.key

Field Configuration #

How Encryption Affects Filtering #

Encrypted fields only support the following filter operators:

• Equal to
• Not equal to
• Exists
• Does not exist

How Filtering Works Internally #

1. Retrieve the encrypted field key and decrypt it using the application key.
2. Use the field key to generate an HMAC-SHA256 signature for the user’s input.
3. Concatenate the signature with . and perform a prefix search on the encrypted field value in the database.

Key Rotation #

When migrating an application to a new environment, you may want to replace the old application key. You can use the APES key-rotation command to generate a new application key.

The command requires the application key from the old environment. After running it, APES generates a new application key and replaces the old one. The new key is stored in the default directory and base64-encoded.

# --key-path points to the old application key file corresponding to the encrypted data in the database
yarn APES key-rotation --key-path /path/to/old-app-keys/270263524860909922913.key

For rotating a sub-application’s key, add the --app-name parameter:

yarn APES key-rotation --app-name a_w0r211vv0az --key-path /path/to/old-app-keys/270263524860909922913.key
